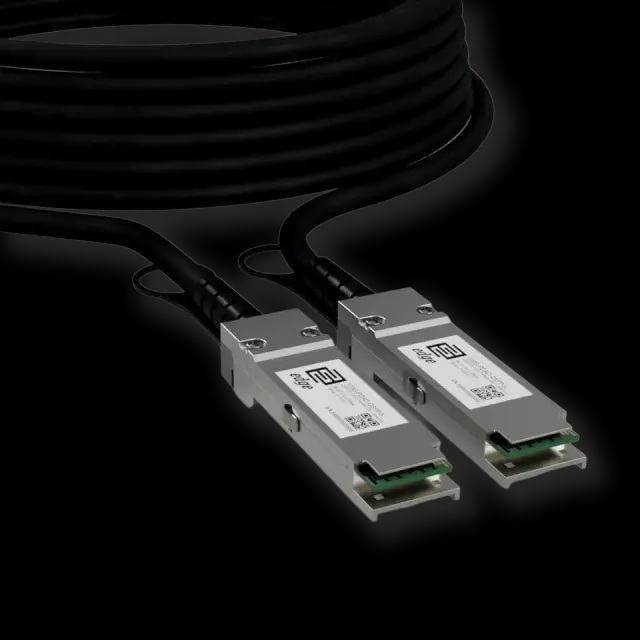

(100G-PDAC-QSFP-3-MS) 100G QSFP28 Passive DAC Cable OverviewOur 100G QSFP28 Passive DAC Twinax Copper Cable delivers ultra-high-speed connectivity for next-generation data centers. Supporting multi-rate operation from 44.8 to 112.2 Gbps with lengths from 0.5m to 5m, this AWG 26 twinax cable provides reliable low-latency performance for spine-leaf architectures. Operating at 0-70°C with zero power consumption, enabling cost-effective 100G deployments. Cable Type: Passive Direct Attach Cable (PDAC) Cable Configuration: Point-to-Point Connector Type: QSFP28 to QSFP28 Supported Data Rate: 44.8 Gbps - 112.2 Gbps Maximum Distance: 5 m AWG (Wire Gauge): AWG30 (0.5-1.5m) | AWG28 (2-3m) | AWG26 (4-5m) DDM/DOM: Supported Temperature Range: Standard 0°-70°C MTBF: 1000000 hours |
Price:
€ 34.83
+ VAT
Notify when available |
100G-PDAC-QSFP.pdfProducts
