(P-60-5G-5) Iskra P-60 5G MIMO Antenna - Cable 5m

NEVAR PIEGĀDĀT AR PAKOMĀTU, JĀIZVĒLAS KURJERPAKALPOJUMS

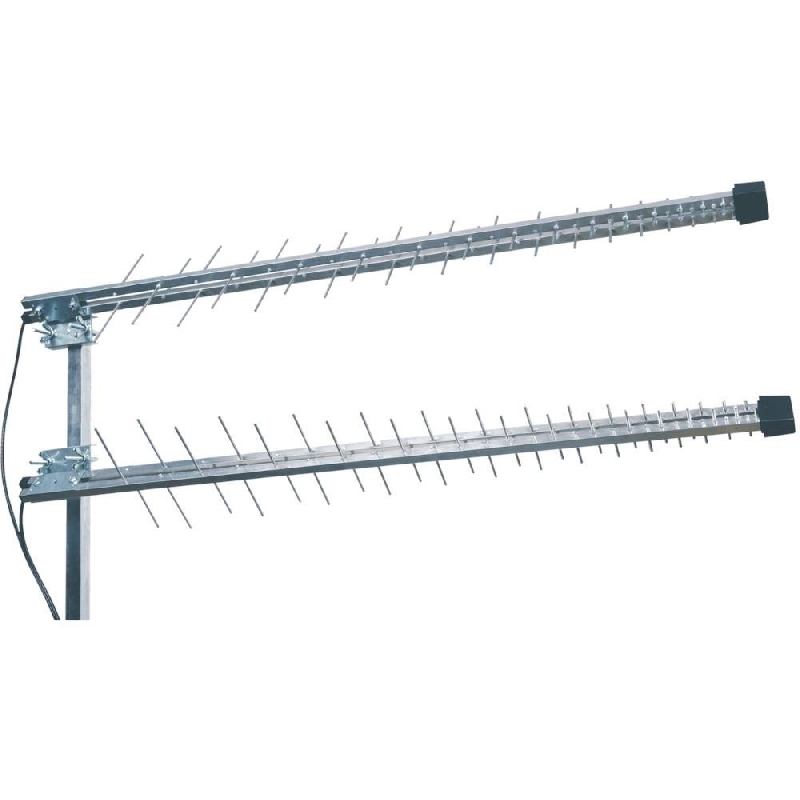

Antenna set P-60 5G MIMO contains 2 antennas
Gain 7.5-10.5 dBi
Frequency range from LTE 700 to LTE 5G 3,8 GHz

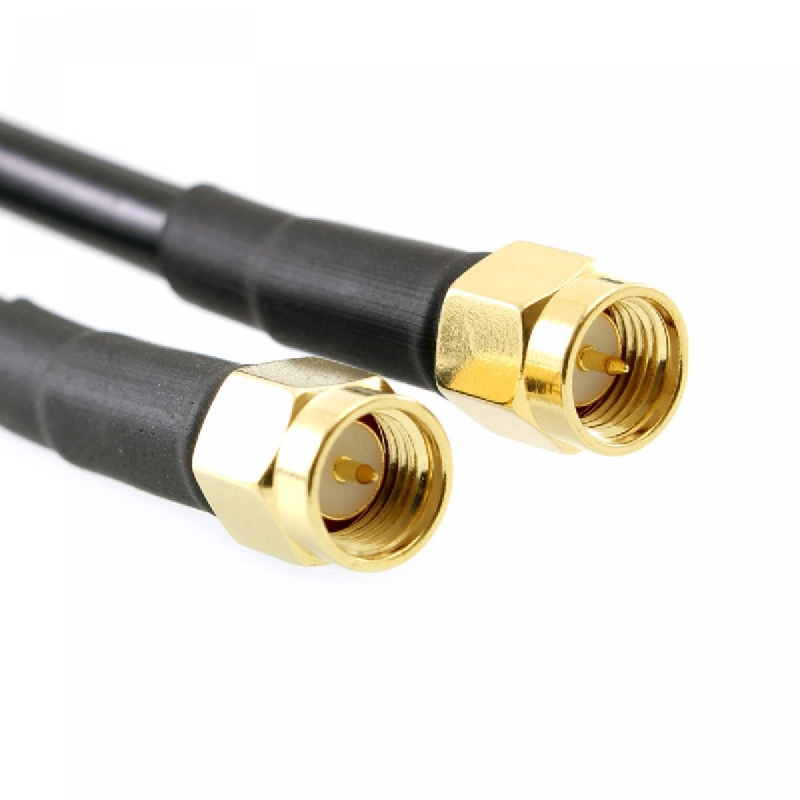

Cable length 5m.

DESCRIPTION
Antenna set P-60 5G 7003800 MIMO is used for the reception of mobile operators' signals in MIMO technology (two antennas mounted into X polarity).
The antenna set covers ultra wide frequency range from LTE 700 to LTE 5G 3,8 GHz frequency bands.
Set is the most suitable for connecting it to Wi-Fi router or MIMO modem.
One set contain two antennas (one for upper and one for lower mounting position) with the same technical data.
SPECIFICATION
Operating Frequency
LTE 700 (698-790 MHz), LTE 800 (790-862 MHz), GSM 900 (880-960 MHz), DCS 1800 (1710-1880 MHz), UMTS (3G) (1920-2170 MHz), Wi-Fi (WLAN) (2401-2495 MHz), LTE 2,6 GHz (2,5-2,7 GHz) and LTE 5G (3,3 – 3,8 GHz)
Mounting
Mounting on mast with outside diameter: 20-50 mm
Frequency Range
LTE 700 (698-790 MHz), LTE 800 790-862 MHz), GSM 900 (880-960 MHz), DCS 1800 (1710-1880 MHz), UMTS (3G) (1920-2170 MHz), Wi-Fi (WLAN) (2401-2495 MHz), LTE 2,6 GHz (2,5-2,7 GHz) and LTE 5G (3,3 – 3,8 GHz)
Gain 7,5-10,5 dBi
Nominal Impedance 50 Ω
Max Power Consumption 50 W
Antenna beam width
Horizontal 52°; Vertical 44°

Technical Specs Datasheet - Iskra P-60 5G MIMO Antenna - Cable 5m.PDF

Cena on-line: € 89.70 + PVN
Paziņot kad pieejams
