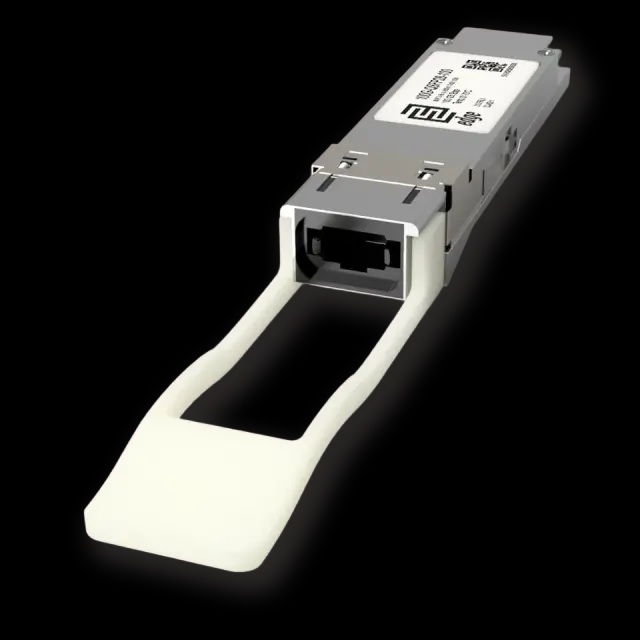

(100G-QSFP28-100-MS) 100GBASE-SR4 QSFP28 Transceiver OverviewThe 100GBASE-SR4 QSFP28 module gives data centers a short-reach 100 Gigabit Ethernet link over parallel multimode fiber. Four 25G lanes at 850 nm run across an MTP/MPO-12 ribbon, reaching 100 m on OM4 and 70 m on OM3, with DOM diagnostics on the standard QSFP28 management interface. Its 8-fiber parallel MPO design fits high-density top-of-rack and spine fabrics built on structured trunk cabling. The module is coded for recognition across multiple vendor switching and routing platforms. Media Type: 4 Lanes of Multi-Mode Fiber (MMF) Connector: MTP/MPO-12 (UPC) Fiber Count: 8 Fibers Maximum Distance: 100 m Average Link Budget: 1.9 dB Tx Wavelength: 850 nm Supported Data Rate: 103.125 Gbps DDM/DOM: Supported Forward Error Correction (FEC): No Temperature Range: Standard 0°-70°C |
Cena on-line:
€ 36.51
+ PVN
Paziņot kad pieejams |
100G-QSFP28-100.pdfProdukti
